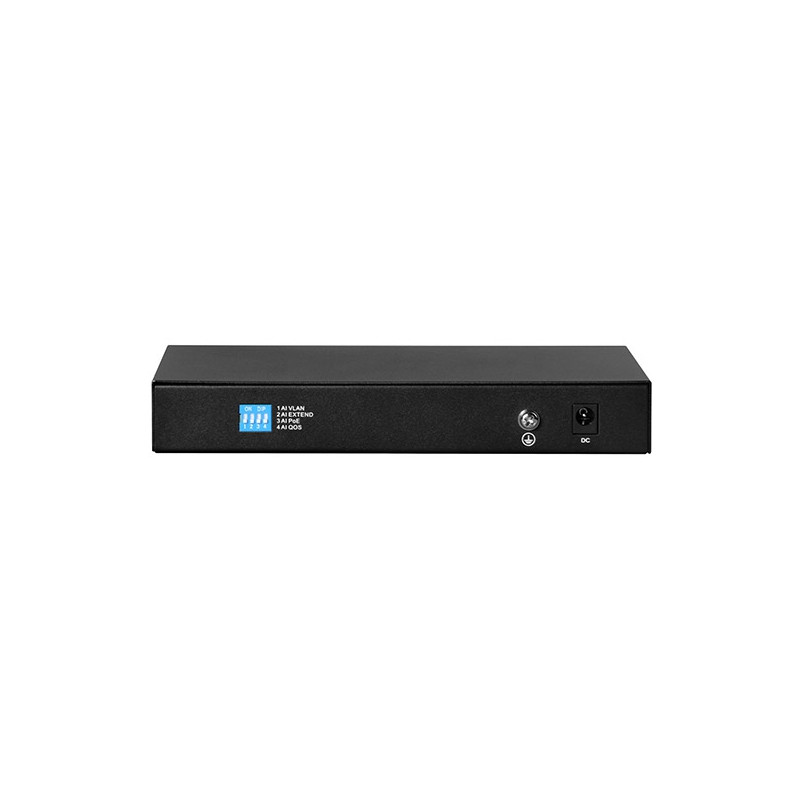

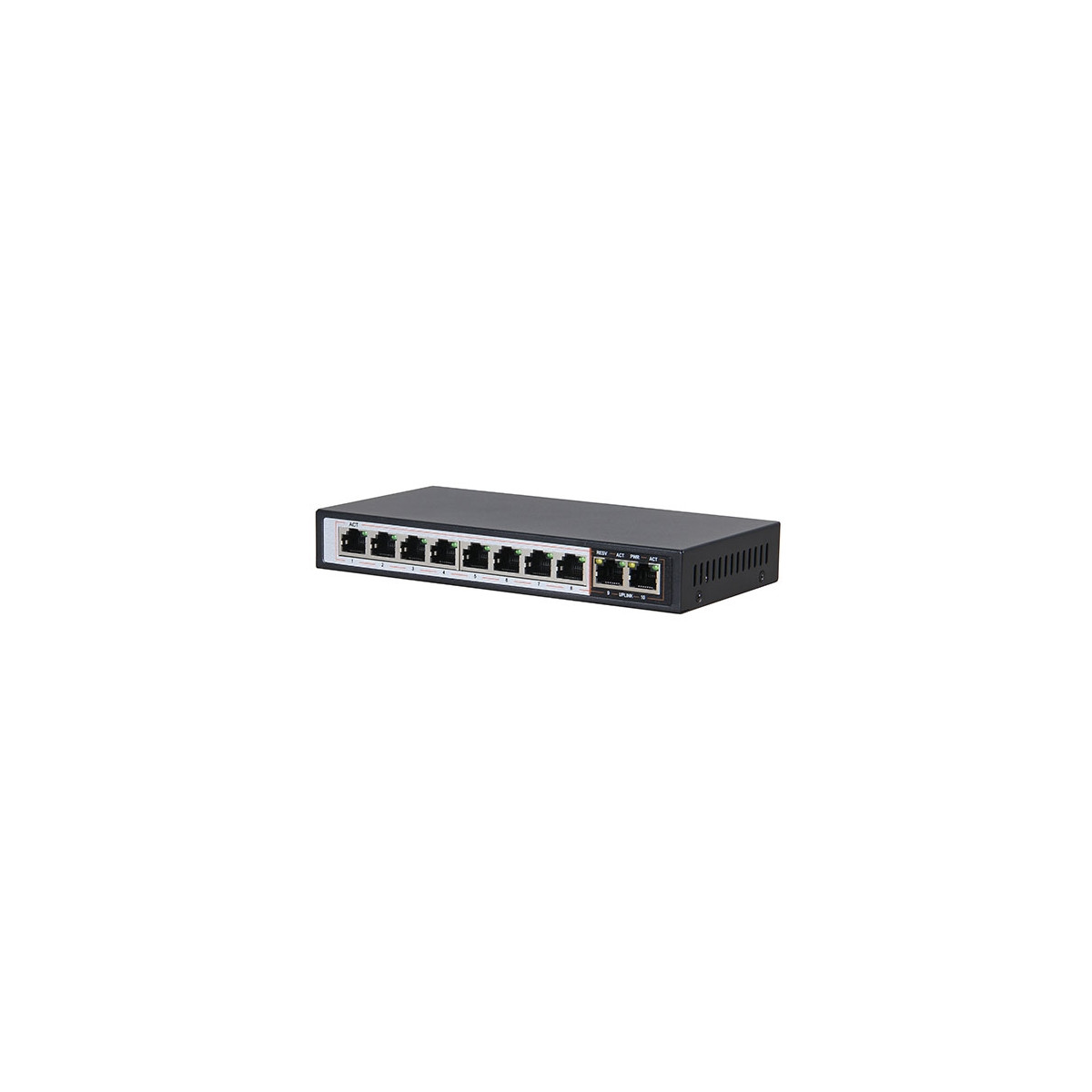

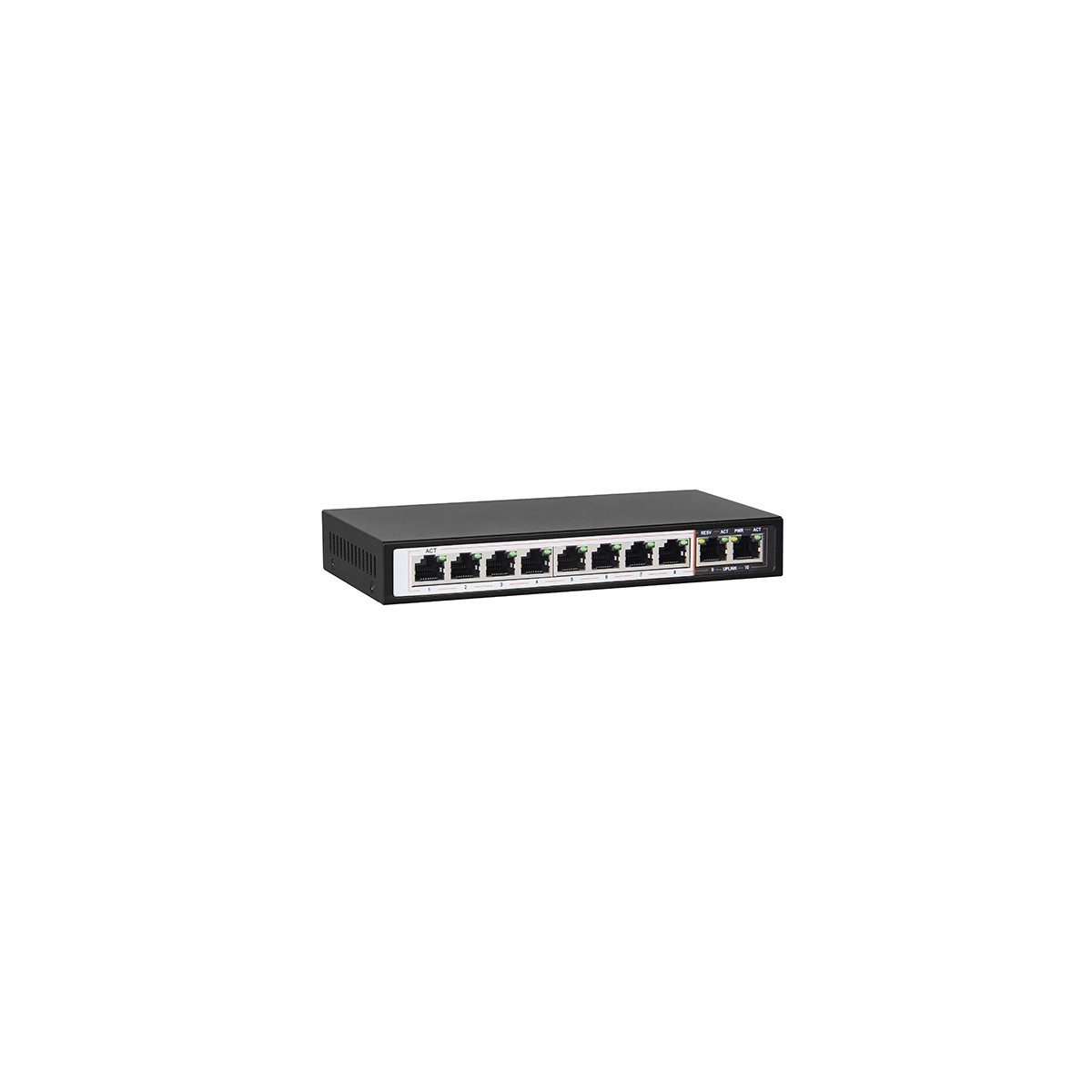

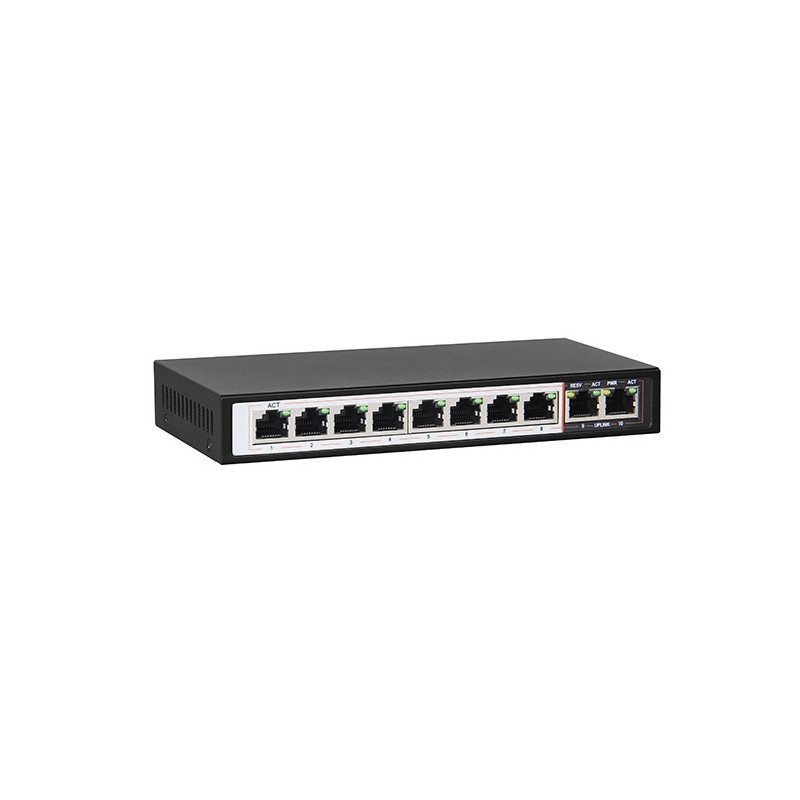

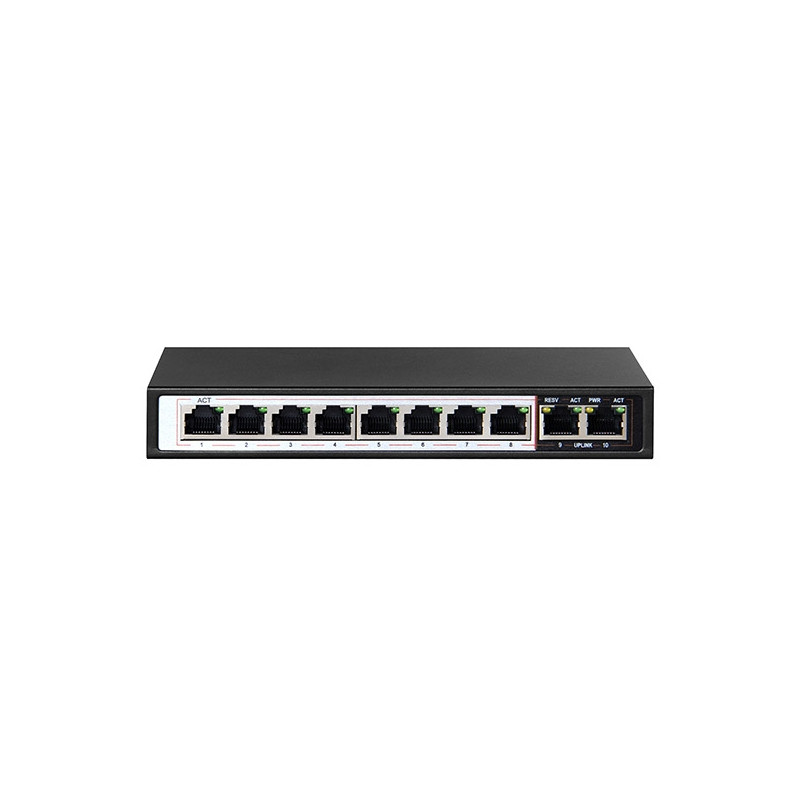

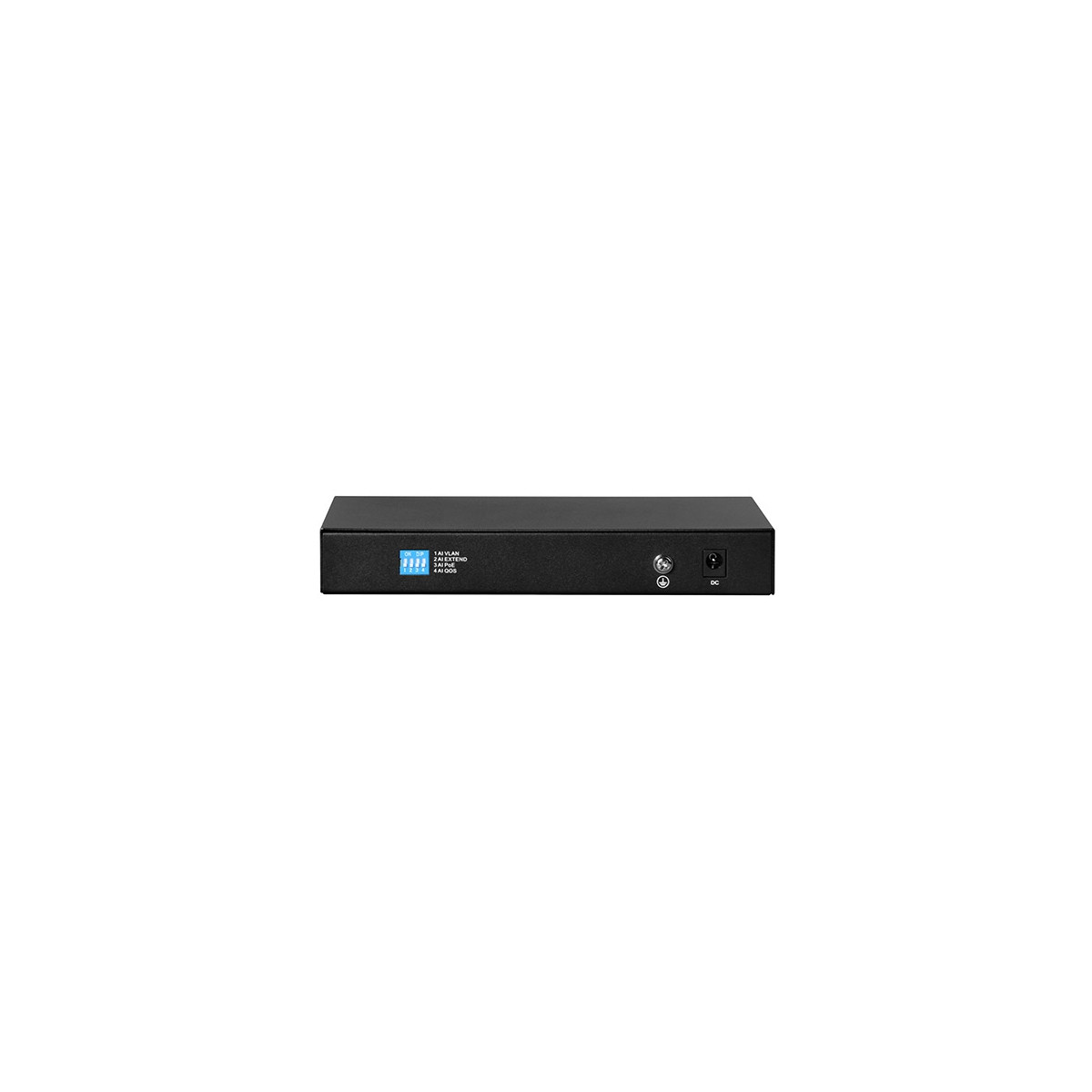

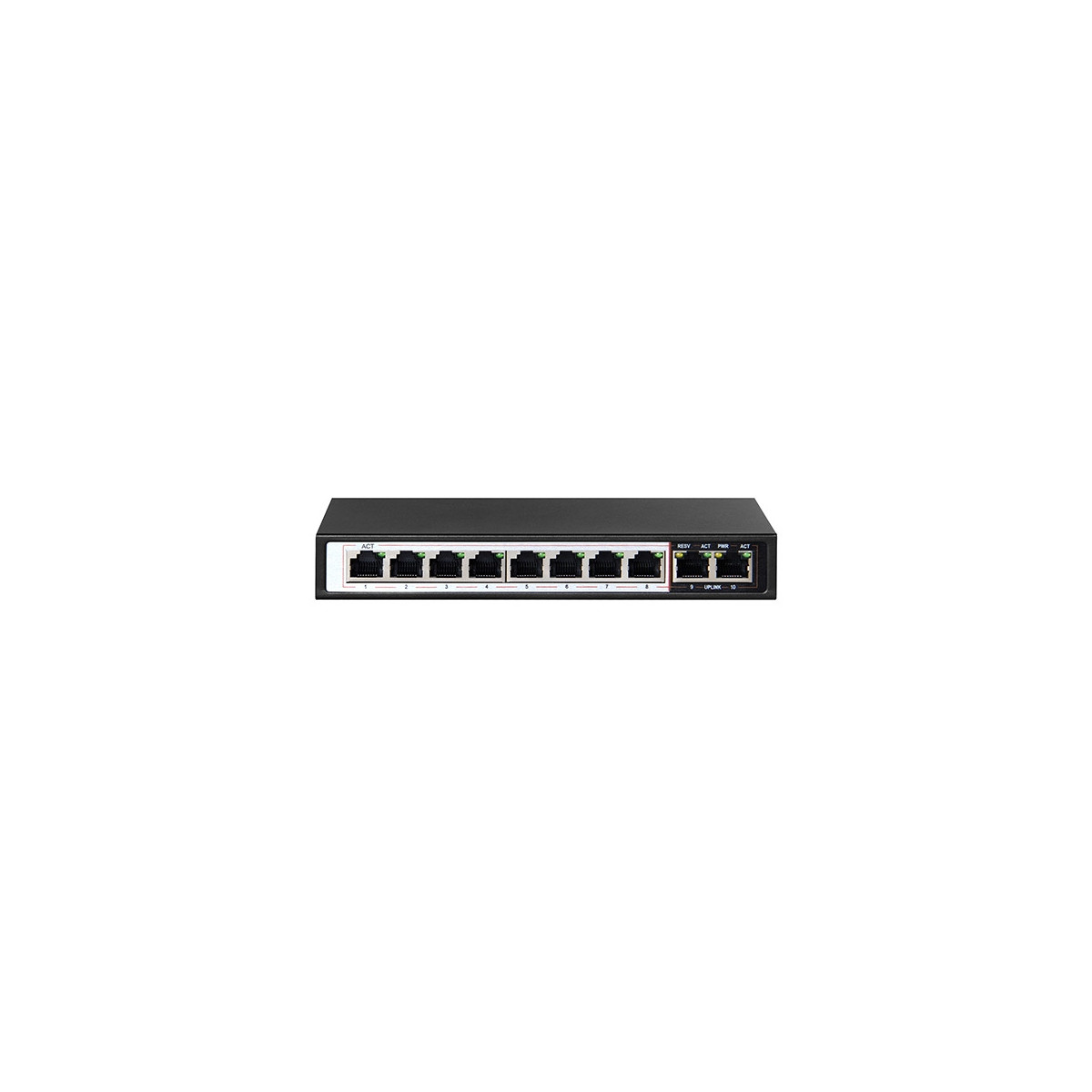

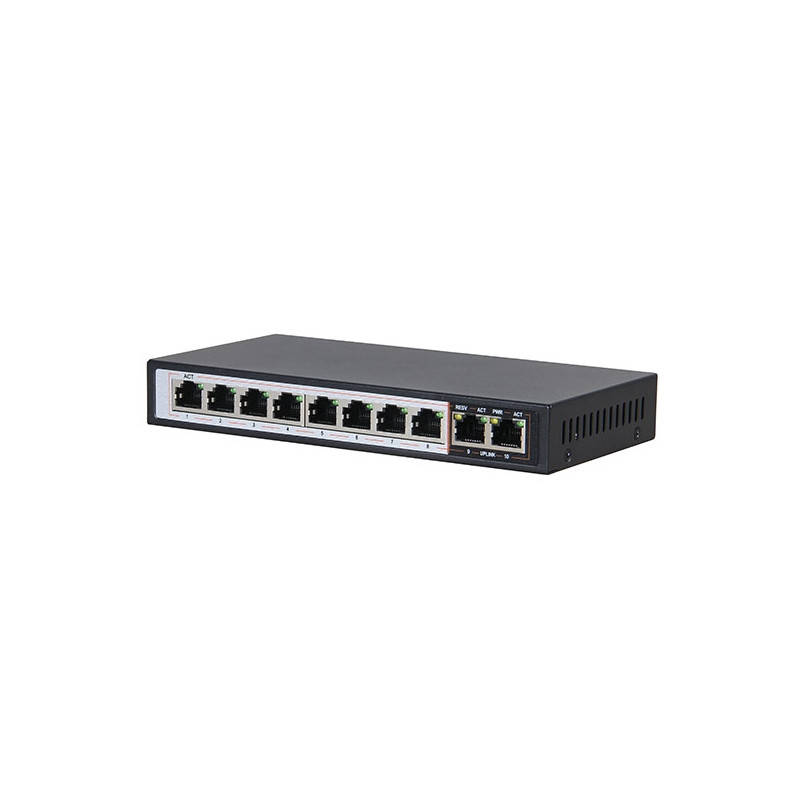

AI1010 - CCTV PoE Switch 8+2 do 250m

AI1010 10-port 100Mbps AI PoE switch

 AI Smart POE Switch
8x 100Mbps RJ45 port (250M POE is available)
2x 100Mbps Uplink

 5 working modes:
Standard switching mode: All ports communicate freely;
AI VLAN: Avoid the internet storm and enhance the network ability;
AI Extend: Extend 250M transmission;
AI PoE: Automatic self checking, reboot the device while find it fake dead;
AI QoS，Video data first, more fluent transmission

【Product parameters】

• 8 100Mbps RJ45 ports (supporting 250m PoE power supply)
• 2 100Mbps uplink port
• Supports 5 working modes: standard switching, AI VLAN, AI Extend ,AI PoE,AI QoS mode.
• Support IEEE802.3af/at, single port output maximum power 30W
• Power supply: 96W

【One key switch, five working modes】

• Standard switching mode: All ports communicate freely, suitable for ordinary data transmission environment.
• AI VLAN mode: Separating 1-8 ports from each other, can effectively restrain network storm and improve network performance.
• AI Extend mode: Designed for monitoring application scenarios, 1-8 ports support 250 meters long distance power supply.
• AI QoS mode：Video data first, more fluent transmission.
• AI PoE mode：Automatic self checking, reboot the device while find it fake dead.

【PoE power supply function】

• 8 100M RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in security monitoring, teleconferencing systems, and wireless coverage.
• Support IEEE802.3af/at standard protocol, single port maximum PoE output power is 30W, no need to worry about PoE or non-PoE devices with private standards will be corrupted.

【Stable and smooth transmission】

• With power circuit protection, it can protect the security and stability of the back-end equipment.
• All ports support non-blocking wire-speed forwarding for smoother transmission.

【Green energy conservation】

• Intelligent power supply, the lowest power consumption, to ensure the power consumption of the PD terminal.
• No fan design, energy saving and environmental protection; no noise, reducing the impact on the environment.
• Support port no link power saving function.

【Simple operation】

• Zero configuration characteristic power supply, plug and play, no configuration, simple and convenient.
• The user can easily understand the working state of the equipment through power and port status indicator (Link/Act).

Špecifikácia AI1010:
